PIBaseTransfer Class Reference

Base transport for reliable fixed-size packet exchange over an external channel. More...

#include <pibasetransfer.h>

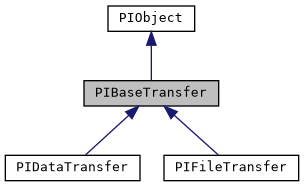

Inheritance diagram for PIBaseTransfer:

Classes
struct	PacketHeader
	Common header placed before every protocol packet. More...
struct	Part
	Logical fragment description used to split data into packets. More...

Public Member Functions
	PIBaseTransfer ()
	Constructs transfer with default packet size, timeout and diagnostics.
	~PIBaseTransfer ()
	Stops active transfer state and owned diagnostics.
void	stopSend ()
	Requests cancellation of the current send session.
void	stopReceive ()
	Requests cancellation of the current receive session.
bool	isSending () const
	Returns whether a send session is active.
bool	isReceiving () const
	Returns whether a receive session is active.
bool	isPause () const
	Returns whether the transfer is currently paused.
void	setPause (bool pause_)
	Switches current session between paused and resumed states.
void	setPacketSize (int size)
	Sets maximum encoded packet size in bytes.
int	packetSize () const
	Returns maximum encoded packet size in bytes.
void	setTimeout (double sec)
	Sets session timeout in seconds for start negotiation, acknowledgements and pause recovery.
double	timeout () const
	Returns session timeout in seconds.
void	setCRCEnabled (bool en=true)
	Enables or disables CRC validation for data packets.
bool	isCRCEnabled () const
	Returns whether CRC validation is enabled.
PIString	stateString () const
	Returns short textual state of the current session.
PIString	packetMap () const
	Returns a map of successfully received or transmitted packets for the current session.
llong	bytesAll () const
	Returns total number of bytes planned for the current session.
llong	bytesCur () const
	Returns number of bytes already processed in the current session.
const PIDiagnostics &	diagnostic ()
	Get diagnostics object. More...
Public Member Functions inherited from PIObject
	PIObject (const PIString &name=PIString())
	Constructs an object and initializes its name property.
virtual	~PIObject ()
	Destroys the object, raises deleted() and disconnects it from the event graph.
PIString	name () const
	Returns the name property of this object.
virtual const char *	className () const
	Returns the registered class name of this object.
virtual uint	classNameID () const
	Returns the hash of className().
virtual const char *	parentClassName () const
	Returns the registered parent class name, or an empty string for the root.
bool	debug () const
	Returns whether piCoutObj output is enabled for this object.
void	setName (const PIString &name)
	Sets the name property of this object.
void	setDebug (bool debug)
	Enables or disables piCoutObj output for this object.
PIVariant	property (const char *name) const
	Returns the property with name "name".
void	setProperty (const char *name, const PIVariant &value)
	Sets the property "name" to "value" and creates it if needed. More...
bool	isPropertyExists (const char *name) const
	Returns whether the property "name" exists.
void	setThreadSafe (bool yes)
	Enables or disables the internal object mutex during handler execution. More...
bool	isThreadSafe () const
	Returns whether the internal object mutex is enabled for handler execution.
bool	execute (const PIString &method, const PIVector< PIVariantSimple > &vl)
	Executes a registered method or handler method by name with the supplied arguments. More...
bool	execute (const PIString &method)
	Overload of execute() for a method without arguments.
bool	execute (const PIString &method, const PIVariantSimple &v0)
	Overload of execute() for one argument.
bool	execute (const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1)
	Overload of execute() for two arguments.
bool	execute (const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1, const PIVariantSimple &v2)
	Overload of execute() for three arguments.
bool	execute (const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1, const PIVariantSimple &v2, const PIVariantSimple &v3)
	Overload of execute() for four arguments.
bool	executeQueued (PIObject *performer, const PIString &method, const PIVector< PIVariantSimple > &vl)
	Queues execution of a registered method on the performer object. More...
bool	executeQueued (PIObject *performer, const PIString &method)
	Overload of executeQueued() for a method without arguments.
bool	executeQueued (PIObject *performer, const PIString &method, const PIVariantSimple &v0)
	Overload of executeQueued() for one argument.
bool	executeQueued (PIObject *performer, const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1)
	Overload of executeQueued() for two arguments.
bool	executeQueued (PIObject *performer, const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1, const PIVariantSimple &v2)
	Overload of executeQueued() for three arguments.
bool	executeQueued (PIObject *performer, const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1, const PIVariantSimple &v2, const PIVariantSimple &v3)
	Overload of executeQueued() for four arguments.
void	dump (const PIString &line_prefix=PIString()) const
	Dumps object diagnostics to the project output stream.
PIStringList	scopeList () const
	Returns the registered inheritance scope of this object, including its own class.
PIStringList	methodsEH () const
	Returns full signatures of all registered event and handler methods for this class scope.
bool	isMethodEHContains (const PIString &name) const
	Returns whether a registered event or handler method with this name exists.
PIString	methodEHArguments (const PIString &name) const
	Returns the comma-separated argument type list of a registered method.
PIString	methodEHFullFormat (const PIString &name) const
	Returns the full registered signature of a method.
PIString	methodEHFromAddr (const void *addr) const
	Returns the registered method name for the specified entry-point address.
void	piDisconnect (const PIString &sig, PIObject *dest, void *ev_h)
	Disconnects this source object from a specific destination handler for event "sig".
void	piDisconnect (const PIString &sig, PIObject *dest)
	Disconnects this source object from all connections of event "sig" to destination object "dest".
void	piDisconnect (const PIString &sig)
	Disconnects this source object from all connections of event "sig".
bool	isPIObject () const
	Returns whether this pointer still refers to a live PIObject instance.
template<typename T >
bool	isTypeOf () const
	Returns whether this object belongs to class "T" or one of its registered descendants.
template<typename T >
T *	cast () const
	Returns this object cast to "T" when isTypeOf<T>() succeeds, otherwise nullptr.
void	callQueuedEvents ()
	Executes all queued deliveries posted to this performer object.
bool	maybeCallQueuedEvents ()
	Executes queued deliveries only when this object was used as a performer. More...
void	deleteLater ()
	Schedules the object for deferred deletion. More...
void	deleted (PIObject *o)
	Raised immediately before object destruction. More...

Static Public Member Functions
static uint	packetSignature ()
	Returns the packet signature constant used by the protocol.
Static Public Member Functions inherited from PIObject
static bool	execute (PIObject *o, const PIString &method, const PIVector< PIVariantSimple > &vl)
	Static convenience wrapper for execute().
static bool	execute (PIObject *o, const PIString &method)
	Static overload of execute() without arguments.
static bool	execute (PIObject *o, const PIString &method, const PIVariantSimple &v0)
	Static overload of execute() for one argument.
static bool	execute (PIObject *o, const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1)
	Static overload of execute() for two arguments.
static bool	execute (PIObject *o, const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1, const PIVariantSimple &v2)
	Static overload of execute() for three arguments.
static bool	execute (PIObject *o, const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1, const PIVariantSimple &v2, const PIVariantSimple &v3)
	Static overload of execute() for four arguments.
static bool	executeQueued (PIObject *o, PIObject *performer, const PIString &method, const PIVector< PIVariantSimple > &vl)
	Static convenience wrapper for executeQueued().
static bool	executeQueued (PIObject *o, PIObject *performer, const PIString &method)
	Static overload of executeQueued() without arguments.
static bool	executeQueued (PIObject *o, PIObject *performer, const PIString &method, const PIVariantSimple &v0)
	Static overload of executeQueued() for one argument.
static bool	executeQueued (PIObject *o, PIObject *performer, const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1)
	Static overload of executeQueued() for two arguments.
static bool	executeQueued (PIObject *o, PIObject *performer, const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1, const PIVariantSimple &v2)
	Static overload of executeQueued() for three arguments.
static bool	executeQueued (PIObject *o, PIObject *performer, const PIString &method, const PIVariantSimple &v0, const PIVariantSimple &v1, const PIVariantSimple &v2, const PIVariantSimple &v3)
	Static overload of executeQueued() for four arguments.
static PIObject::Connection	piConnect (PIObject *src, const PIString &sig, PIObject *dest_o, void *dest, void *ev_h, void *e_h, int args, const char *loc)
	Low-level direct connection helper behind the legacy CONNECT* macros.
static PIObject::Connection	piConnectU (PIObject *src, const PIString &sig, PIObject *dest_o, void *dest, const PIString &hname, const char *loc, PIObject *performer=0)
	Low-level name-based connection helper behind CONNECTU() and CONNECTU_QUEUED().
static PIObject::Connection	piConnectLS (PIObject *src, const PIString &sig, std::function< void()> *f, const char *loc)
	Low-level helper that connects an event to a lambda or functor wrapper.
static void	piDisconnect (PIObject *src, const PIString &sig, PIObject *dest, void *ev_h)
	Disconnects source object "src" from a specific destination handler for event "sig".
static void	piDisconnect (PIObject *src, const PIString &sig, PIObject *dest)
	Disconnects source object "src" from all connections of event "sig" to destination object "dest".
static void	piDisconnect (PIObject *src, const PIString &sig)
	Disconnects source object "src" from all connections of event "sig".
static void	raiseEvent (PIObject *sender, const uint eventID)
	Internal event delivery helper for registered events without arguments.
template<typename T0 >
static void	raiseEvent (PIObject *sender, const uint eventID, const T0 &v0=T0())
	Internal event delivery helper for registered events with one argument.
template<typename T0 , typename T1 >
static void	raiseEvent (PIObject *sender, const uint eventID, const T0 &v0=T0(), const T1 &v1=T1())
	Internal event delivery helper for registered events with two arguments.
template<typename T0 , typename T1 , typename T2 >
static void	raiseEvent (PIObject *sender, const uint eventID, const T0 &v0=T0(), const T1 &v1=T1(), const T2 &v2=T2())
	Internal event delivery helper for registered events with three arguments.
template<typename T0 , typename T1 , typename T2 , typename T3 >
static void	raiseEvent (PIObject *sender, const uint eventID, const T0 &v0=T0(), const T1 &v1=T1(), const T2 &v2=T2(), const T3 &v3=T3())
	Internal event delivery helper for registered events with four arguments.
static PIObject *	findByName (const PIString &name)
	Returns the first live object with name "name", or nullptr.
static bool	isPIObject (const PIObject *o)
	Returns whether "o" points to a live PIObject instance.
static bool	isPIObject (const void *o)
	Overload of isPIObject() for an untyped pointer.
template<typename T >
static bool	isTypeOf (const PIObject *o)
	Returns whether "o" belongs to class "T" or one of its registered descendants.
template<typename T >
static bool	isTypeOf (const void *o)
	Overload of isTypeOf() for an untyped pointer.
static PIString	simplifyType (const char *a, bool readable=true)
	Simplifies a C++ type spelling for registered-method metadata.

Protected Member Functions
void	buildSession (PIVector< Part > parts)
virtual PIByteArray	buildPacket (Part fi)=0
	Returns payload bytes for one requested logical fragment.
virtual void	receivePart (Part fi, PIByteArray ba, PIByteArray pheader)=0
	Consumes one received logical fragment and optional custom packet header.
virtual void	beginReceive ()
	Called after a new receive session is accepted and initialized.
virtual PIByteArray	customHeader ()
	Custom header.
bool	send_process ()
	Runs the prepared send session until success, failure or cancellation.
Protected Member Functions inherited from PIObject
PIObject *	emitter () const
	Returns the source object that raised the current event. More...
virtual void	propertyChanged (const char *name)
	Virtual method called after property "name" has been changed by setProperty().

Handlers
void	received (PIByteArray data)
	Processes a single encoded packet received from an external transport. More...
void	stop ()
	Stops both sending and receiving sides of the current session. More...
void	pause ()
	Switches current session to paused state. More...
void	resume ()
	Resumes the current paused session. More...

Events
void	receiveStarted ()
	Emitted when a receive session is accepted and initialized. More...
void	paused ()
	Emitted when the transfer enters paused state. More...
void	resumed ()
	Emitted when the transfer leaves paused state. More...
void	receiveFinished (bool ok)
	Emitted when the receive session finishes with result "ok". More...
void	sendStarted ()
	Emitted when a prepared send session starts. More...
void	sendFinished (bool ok)
	Emitted when the send session finishes with result "ok". More...
void	sendRequest (PIByteArray &data)
	Emitted for every encoded packet that must be written to the external transport. More...

Additional Inherited Members
Related Functions inherited from PIObject
#define	piCoutObj
	Macro used for conditional (piDebug && PIObject::debug()) output to PICout(StdOut) for subclasses of PIObject.
#define	piCerrObj
	Macro used for conditional (piDebug && PIObject::debug()) output to PICout(StdErr) for subclasses of PIObject.
#define	PIOBJECT(name)
	Put this macro inside a direct PIObject subclass definition to enable registered events, event handlers and class metadata.
#define	PIOBJECT_SUBCLASS(name, parent)
	Put this macro inside a PIObject subclass definition to inherit registered methods and class scope from "parent".
#define	EVENT_HANDLER0(ret, name)   ret name()
	Declare a registered event handler method with signature ret name().
#define	EVENT_HANDLER1(ret, name, type0, var0)   ret name(type0 var0)
	Declare a registered event handler method with one argument.
#define	EVENT_HANDLER2(ret, name, type0, var0, type1, var1)   ret name(type0 var0, type1 var1)
	Declare a registered event handler method with two arguments.
#define	EVENT_HANDLER3(ret, name, type0, var0, type1, var1, type2, var2)   ret name(type0 var0, type1 var1, type2 var2)
	Declare a registered event handler method with three arguments.
#define	EVENT_HANDLER4(ret, name, type0, var0, type1, var1, type2, var2, type3, var3)    ret name(type0 var0, type1 var1, type2 var2, type3 var3)
	Declare a registered event handler method with four arguments.
#define	EVENT_HANDLER   EVENT_HANDLER0
	Synonym of EVENT_HANDLER0.
#define	EVENT_VHANDLER0(ret, name)   virtual ret name()
	Declare a virtual registered event handler method with signature virtual ret name().
#define	EVENT_VHANDLER1(ret, name, type0, var0)   virtual ret name(type0 var0)
	Declare a virtual registered event handler method with one argument.
#define	EVENT_VHANDLER2(ret, name, type0, var0, type1, var1)   virtual ret name(type0 var0, type1 var1)
	Declare a virtual registered event handler method with two arguments.
#define	EVENT_VHANDLER3(ret, name, type0, var0, type1, var1, type2, var2)   virtual ret name(type0 var0, type1 var1, type2 var2)
	Declare a virtual registered event handler method with three arguments.
#define	EVENT_VHANDLER4(ret, name, type0, var0, type1, var1, type2, var2, type3, var3)    virtual ret name(type0 var0, type1 var1, type2 var2, type3 var3)
	Declare a virtual registered event handler method with four arguments.
#define	EVENT_VHANDLER   EVENT_VHANDLER0
	Synonym of EVENT_VHANDLER0.
#define	EVENT0(name)   void name();
	Declare an event method with no arguments.
#define	EVENT1(name, type0, var0)   void name(type0 var0);
	Declare an event method with one argument.
#define	EVENT2(name, type0, var0, type1, var1)   void name(type0 var0, type1 var1);
	Declare an event method with two arguments.
#define	EVENT3(name, type0, var0, type1, var1, type2, var2)   void name(type0 var0, type1 var1, type2 var2);
	Declare an event method with three arguments.
#define	EVENT4(name, type0, var0, type1, var1, type2, var2, type3, var3)   void name(type0 var0, type1 var1, type2 var2, type3 var3);
	Declare an event method with four arguments.
#define	EVENT   EVENT0
	Synonym of EVENT0.
#define	RAISE_EVENT0(src, event)
	Compatibility helper that raises event "event" on source object "src".
#define	RAISE_EVENT1(src, event, v0)
	Compatibility helper that raises event "event" with one argument.
#define	RAISE_EVENT2(src, event, v0, v1)
	Compatibility helper that raises event "event" with two arguments.
#define	RAISE_EVENT3(src, event, v0, v1, v2)
	Compatibility helper that raises event "event" with three arguments.
#define	RAISE_EVENT4(src, event, v0, v1, v2, v3)
	Compatibility helper that raises event "event" with four arguments.
#define	CONNECTU(src, event, dest, handler)
	Connect event "event" from object "src" to event handler or event "handler" of object "dest". More...
#define	CONNECTU_QUEUED(src, event, dest, handler, performer)
	Connect event "event" from object "src" to event handler or event "handler" of object "dest". More...
#define	CONNECTL(src, event, functor)
	Connect event "event" from object "src" to lambda-expression "functor". More...
#define	CONNECT0(ret, src, event, dest, handler)
	Legacy compatibility helper that connects an event to a registered handler with compile-time signature spelling. More...
#define	CONNECT1(ret, type0, src, event, dest, handler)
	Legacy compatibility helper for a one-argument registered event or handler. More...
#define	CONNECT2(ret, type0, type1, src, event, dest, handler)
	Legacy compatibility helper for a two-argument registered event or handler. More...
#define	CONNECT3(ret, type0, type1, type2, src, event, dest, handler)
	Legacy compatibility helper for a three-argument registered event or handler. More...
#define	CONNECT4(ret, type0, type1, type2, type3, src, event, dest, handler)
	Legacy compatibility helper for a four-argument registered event or handler. More...
#define	CONNECT   CONNECT0
	Synonym of CONNECT0. More...
#define	WEAK_CONNECT0(ret, src, event, dest, handler)
	Legacy compatibility helper that skips source method verification. More...
#define	WEAK_CONNECT1(ret, type0, src, event, dest, handler)
	Legacy compatibility helper that skips source method verification for one argument. More...
#define	WEAK_CONNECT2(ret, type0, type1, src, event, dest, handler)
	Legacy compatibility helper that skips source method verification for two arguments. More...
#define	WEAK_CONNECT3(ret, type0, type1, type2, src, event, dest, handler)
	Legacy compatibility helper that skips source method verification for three arguments. More...
#define	WEAK_CONNECT4(ret, type0, type1, type2, type3, src, event, dest, handler)
	Legacy compatibility helper that skips source method verification for four arguments. More...
#define	WEAK_CONNECT   WEAK_CONNECT0
	Synonym of WEAK_CONNECT0. More...
#define	DISCONNECT0(ret, src, event, dest, handler)
	Disconnect a registered event from a registered event handler.
#define	DISCONNECT1(ret, type0, src, event, dest, handler)
	Disconnect a one-argument registered event from a registered event handler.
#define	DISCONNECT2(ret, type0, type1, src, event, dest, handler)
	Disconnect a two-argument registered event from a registered event handler.
#define	DISCONNECT3(ret, type0, type1, type2, src, event, dest, handler)
	Disconnect a three-argument registered event from a registered event handler.
#define	DISCONNECT4(ret, type0, type1, type2, type3, src, event, dest, handler)
	Disconnect a four-argument registered event from a registered event handler.
#define	DISCONNECT   DISCONNECT0
	Synonym of DISCONNECT0.
#define	HANDLER(handler)
	Low-level helper that expands to the registered handler entry point.

Detailed Description

Base transport for reliable fixed-size packet exchange over an external channel.

This class provides a foundation for reliable data transfer with features like error correction, pause/resume functionality, and packet-based communication.

Member Function Documentation

diagnostic()

const PIDiagnostics & PIBaseTransfer::diagnostic ( )

inline

Get diagnostics object.

Returns

Diagnostic object reference

received()

void PIBaseTransfer::received

(

PIByteArray

data

)

Processes a single encoded packet received from an external transport.

Note

This handler must be called when data is received by an external transport.

stop()

void PIBaseTransfer::stop ( )

inline

Stops both sending and receiving sides of the current session.

Note

Equivalent to calling both stopSend() and stopReceive().

pause()

void PIBaseTransfer::pause ( )

inline

Switches current session to paused state.

Note

Triggers the paused() signal.

resume()

void PIBaseTransfer::resume ( )

inline

Resumes the current paused session.

Note

Triggers the resumed() signal.

receiveStarted()

void PIBaseTransfer::receiveStarted

(

)

Emitted when a receive session is accepted and initialized.

Note

Triggered by internal logic after receiving a valid pt_Start packet.

paused()

void PIBaseTransfer::paused

(

)

Emitted when the transfer enters paused state.

Note

Triggered when pause handler is invoked (e.g., via setPause(true) or incoming pt_Pause).

resumed()

void PIBaseTransfer::resumed

(

)

Emitted when the transfer leaves paused state.

Note

Triggered when resume handler is invoked (e.g., via setPause(false) or incoming pt_Start during pause).

receiveFinished()

void PIBaseTransfer::receiveFinished

(

bool

ok

)

Emitted when the receive session finishes with result "ok".

Parameters

ok	true if all packets were received and verified, false on error or interruption.

sendStarted()

void PIBaseTransfer::sendStarted

(

)

Emitted when a prepared send session starts.

Note

Triggered after buildSession() and before the first packet is sent.

sendFinished()

void PIBaseTransfer::sendFinished

(

bool

ok

)

Emitted when the send session finishes with result "ok".

Parameters

ok	true if all packets were sent and acknowledged, false on error or timeout.

sendRequest()

void PIBaseTransfer::sendRequest

(

PIByteArray &

data

)

Emitted for every encoded packet that must be written to the external transport.

Parameters

data	Encoded packet including protocol header and payload.

Note

The external transport should send this data.

buildSession()

void PIBaseTransfer::buildSession ( PIVector< Part >  parts )

protected

Builds session packet layout for logical parts in "parts".
